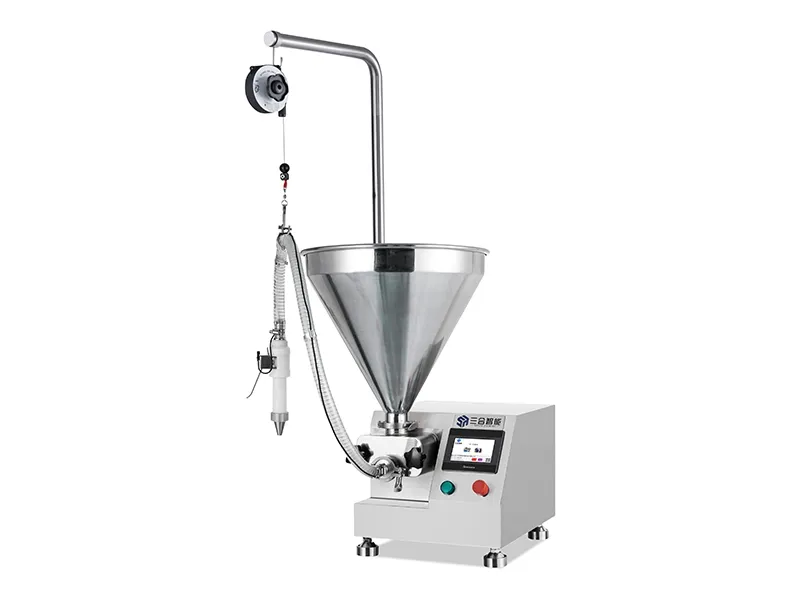

Handheld Depositing Machine C4
The handheld depositing machine is designed for bakery shops, research and development centers, and small central kitchens. Industrial-grade servo-driven quantitative control technology is integrated into a tabletop configuration, providing a stable alternative to manual piping bag operations.

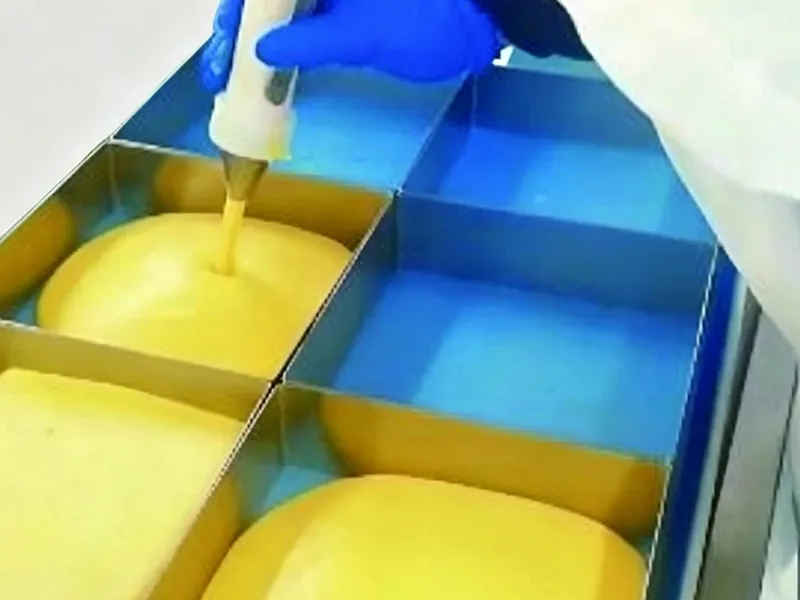

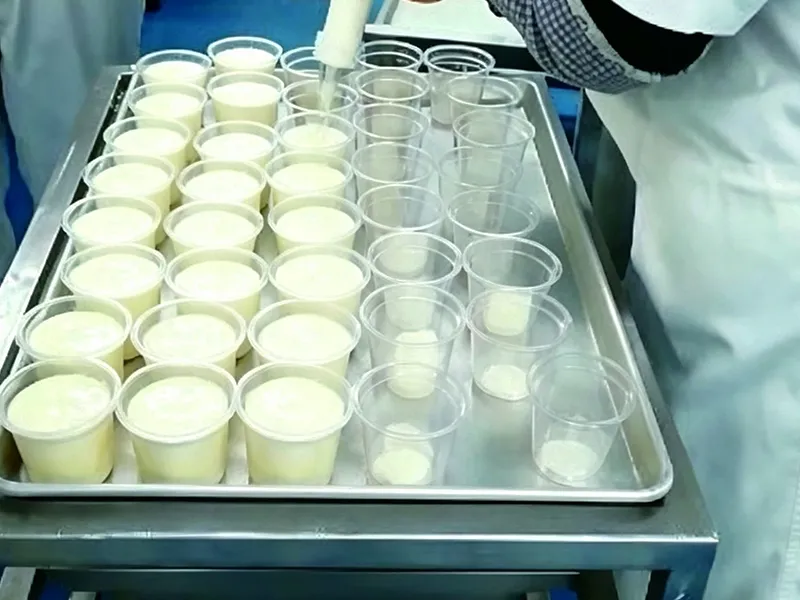

The system eliminates the limitation of fixed discharge nozzles. In addition, an optional handheld discharge gun allows operators to perform surface spreading on irregular cakes, rapid continuous center filling for multi-cavity molds, and free-form decorative piping on cake surfaces.
-
Mochi -
Muffin -
Croissant -
Eclair -
Birthday cake
| Model | C4 |
| Power supply | 0.5kW, 220V 50/60Hz |
| Capacity | 1.0 sec/cycle |
| Hopper volume | 22L |
| Compressed air pressure & flow | 0.4-0.6MPa, 12L/min |
| Dimensions | 500×600×620 mm |
| Control system | Touch screen + PLC + servo motor |
- Multifunctional applications include quantitative filling, surface decoration, surface spreading, and center injection for cakes, bread, mousse desserts, choux pastry, and related products.
- Suitable for semi-fluid materials without large particulates, including cream, mousse, batter, jam, fruit puree, salad, and sauces.
- Wide range of application accessories is available, including handheld discharge gun, mobile worktable, suspension system, filling needles, and spreading nozzles
- Simplified and rapid disassembly and cleaning procedures.
- Manufactured from SUS304 stainless steel and sanitary-grade materials.
- Equipped with touchscreen, PLC control system with adjustable filling weight, and a servo motor ensuring accurate dosing.
- Production data can be stored as customized recipes and recalled as required.
- Suitable for stand alone working or customized production line integration.

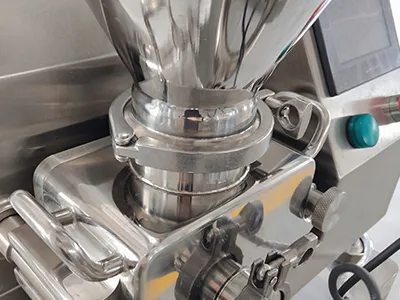

Modular design enables tool-free disassembly and cleaning.
Multifunctional configuration is achieved through interchangeable accessories.
Touchscreen control system with storage capacity for more than 100 recipes.

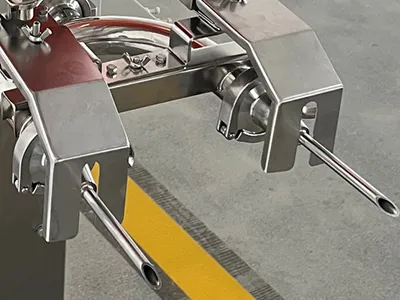

- Handheld discharge gun

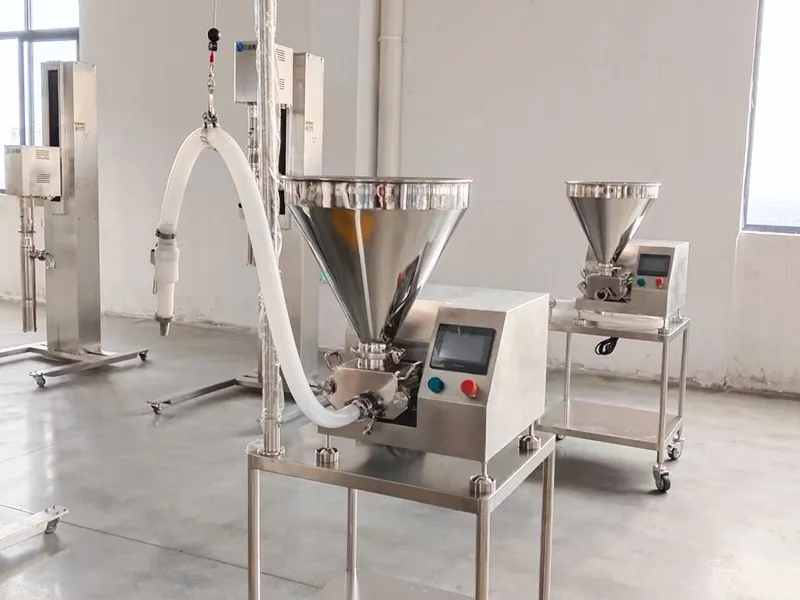

- Mobile worktable or suspension system
- Anti-drip system
- Filling system
