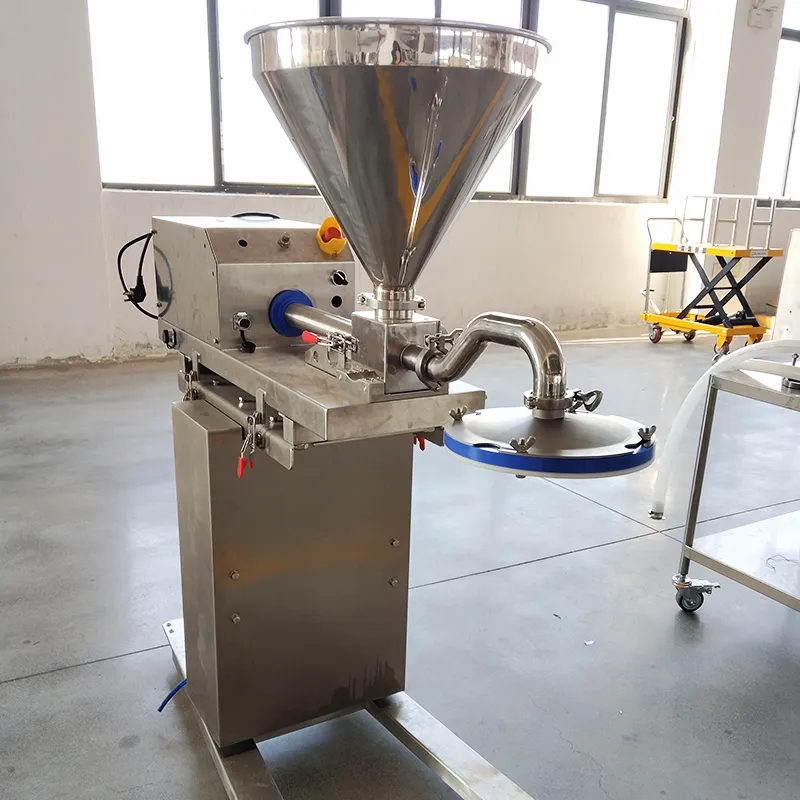

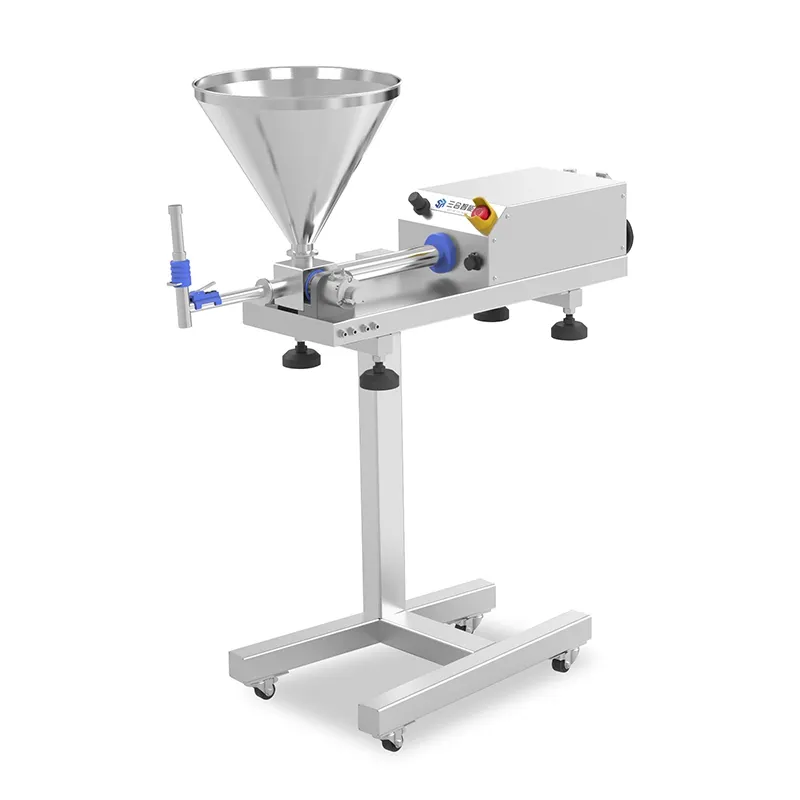

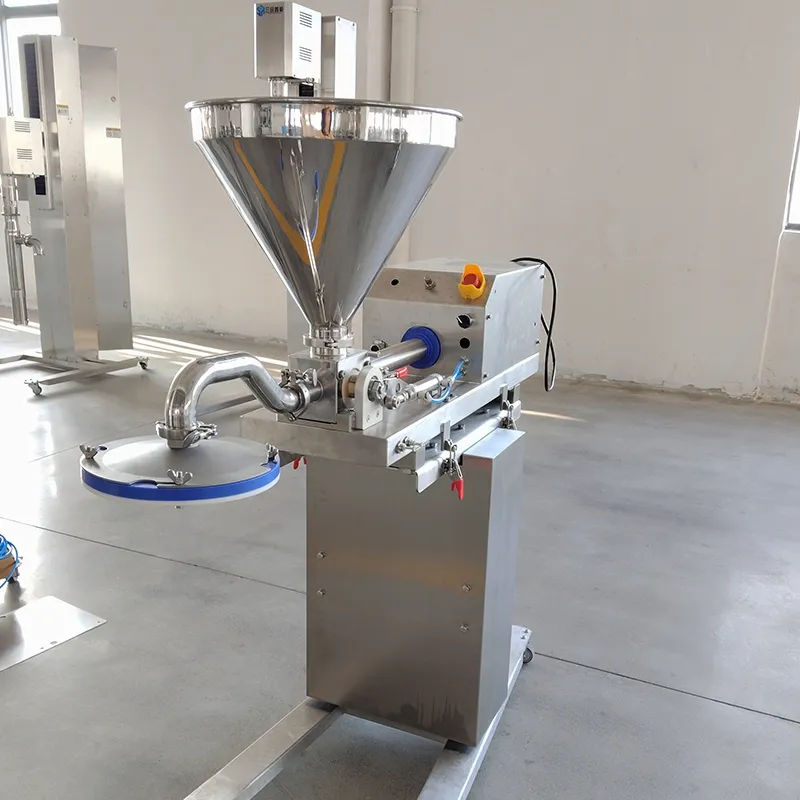

Single Piston Depositor HS801
The single piston depositor is designed to address diversified bakery production requirements within a compact structure. The equipment integrates quantitative depositing, center filling, surface decorating, and spreading functions. It is suitable for bakery shops and central kitchens.
The depositor processes cream, mousse, batter, jam, sauce, and other semi-fluid, liquid, or particulate-containing materials. Multiple application modes can be achieved through interchangeable accessories, providing flexible production capability. The full structure is manufactured from food-grade SUS304 stainless steel and is designed for convenient disassembly and cleaning. The maximum operating frequency reaches 60 cycles per minute. In addition, various filling capacities and conveyor configurations are available, supporting automated production for small- to medium-scale bakery operations.
The single piston depositor is suitable for bakery chains, pastry shops, and catering central kitchens producing cakes, bread, mousse desserts, choux pastry, and other diversified products.
| Model | HS801 |
| Capacity | Max. 60 cycles/min |
| Hopper volume | 22L (standard) |
| Cylinder (optional) | Ø40mm (max. 310ml/shot) Ø50mm (max. 570ml/shot) Ø64mm (max. 800ml/shot) |
| Power supply | 0.1kW, 220V 50/60Hz |
| Compressed air pressure & flow | 0.4-0.6MPa, 25L/min |
| Dimensions (L×W×H) | 1060×520×1330mm |
- Manufactured from SUS304 food-grade stainless steel, designed for convenient disassembly and cleaning.
- Wide range of application accessories available, including handheld discharge gun, mobile worktable, filling needles, and spreading nozzles.
- Simplified disassembly and cleaning procedures.
- Maximum stroke rate up to 60 cycles per minute.
- Three filling capacity options available, supporting a wide range of product weights.
- Configurable with conveyor systems for production line integration.
- Filling capacity options: 310 ml, 570 ml, or 800 ml per cylinder
- Mobile platform
- Filling system
- Anti-drip system
- Decorating system (customizable)
- Thermal control system (heating or cooling)
