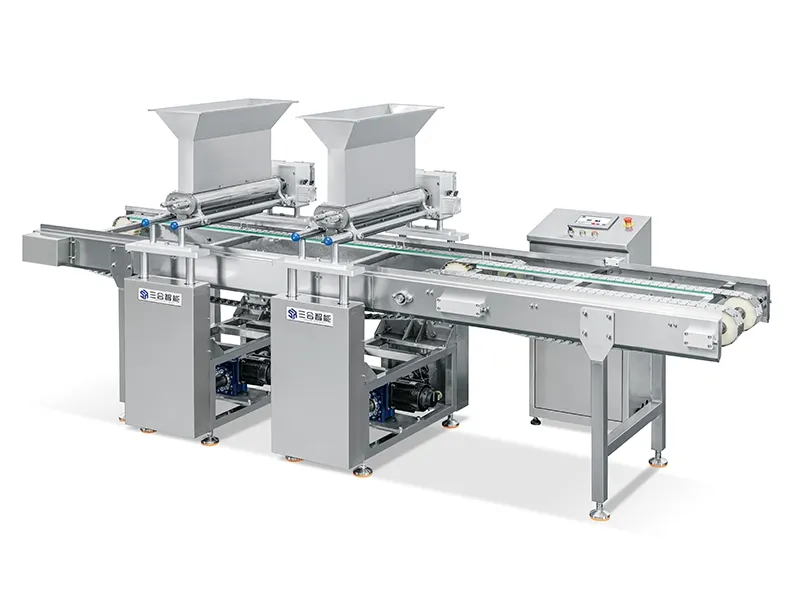

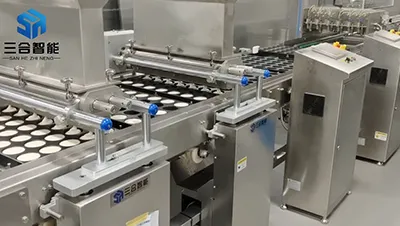

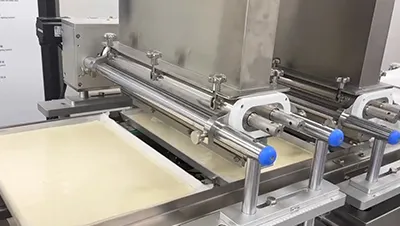

Industrial Depositing Line SC600
(Dual-Station Depositing)

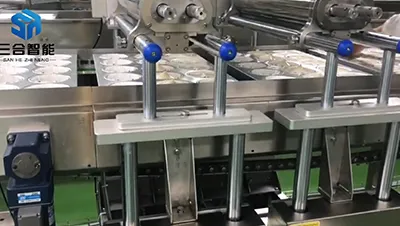

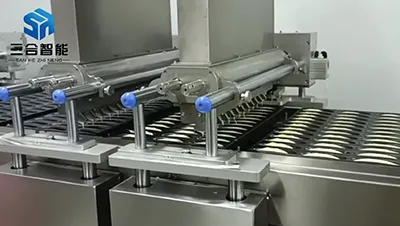

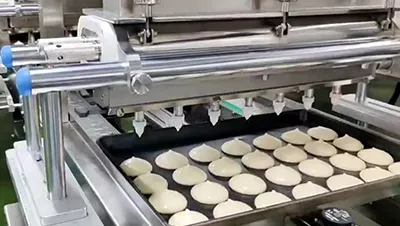

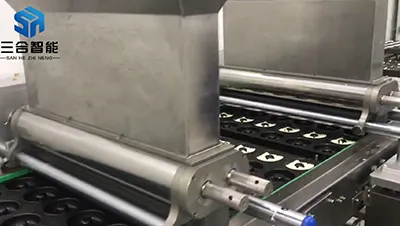

The industrial depositing line is a complete automated depositing solution for dessert production. A servo-driven system controls the rotation angle of the gear pump, enabling high-precision pouring and depositing operations. The line is designed for integration with large-scale tunnel oven production lines.
Customized working widths up to 1500 mm and multi-station coordinated operation support continuous, high-capacity production of sponge cake, chiffon cake, muffins, and madeleines.
Applications
Specifications
| Model | SC600 |
| Power | 5.0kW (servo drive) |
| Voltage | 220V/50Hz/60Hz |
| Dimensions | 3500×1200×1510mm |
| Max. working width | 1500mm (compatible with large-scale tunnel ovens) |
| Compressed air pressure & flow | 0.4-0.6MPa, 75L/min (Industrial-grade air supply required) |
| Hopper volume | 42L (standard, supporting pipe connection for automatic feeding) |
| Capacity | Single row: 2~3.5 sec/row Full tray: 5~10 sec/tray |
Features
- Suitable for semi-fluid materials without large particulates, including sponge and chiffon batter, choux pastry, brownies, cream, and jam. Supports quantitative depositing, decorative application, and spreading processes. Compatible with round and square molds.
- High flexibility for various mold arrangements. Within the specified dimensional range, nozzle quantity and spacing in the same row are not restricted, supporting different tray and mold formats.
- Food-contact components are designed for simplified, rapid, and safe disassembly and cleaning.
- Materials selected according to strict safety standards, meeting industry design requirements.
- Equipped with touchscreen and PLC control system; depositing weight can be adjusted freely.
- Production data can be stored as customized recipes and recalled as required.
- Maximum working width up to 1500 mm; multi-station configurations available according to production requirements.
Details

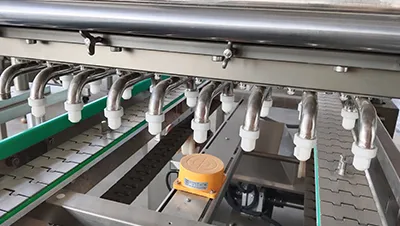

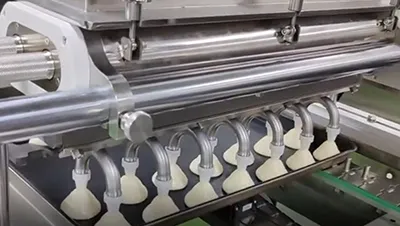

Multiple nozzle installation methods and layout configurations provide broader product compatibility.
High-capacity production configuration with maximum throughput up to 700 kg per hour.
Optional Configurations
- Whole tray discharge system
- High-precision discharge system
- Multiple feed roller options
- Rotary discharge system (customized model)
